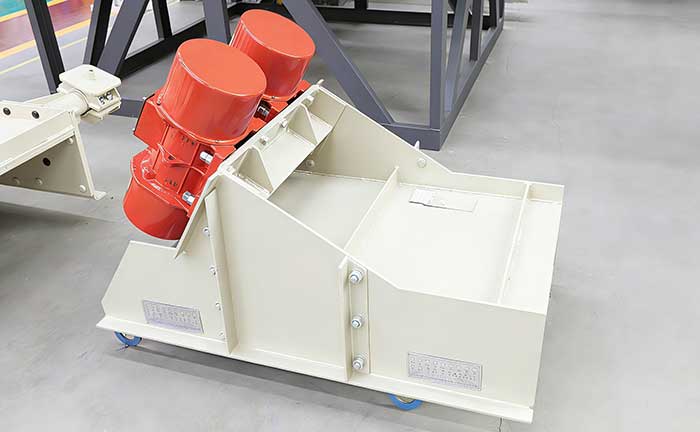

GZG Vibrating Feeder

Feed Size: 0-300mm

Capacity: 60–1500t/h

Installation Angle: 0-10°

Range of Application: coal, metallurgy, electric power, chemical industry, building materials, transport and other industries.

You can also send us a message and we will reply to you within 24 hours.

Email: gemma@jiematrading.com Get Latest Price

Product Details

Parameters

Product Details

This vibrating feeder is widely used in various industries such as mining, metallurgy, coal, building materials, light industry, chemical industry, power, and grain. It can uniformly, continuously, or quantitatively feed lumpy, granular, and powdery materials from storage bins or hoppers to receiving machine.

Parameters

Model	Dimension B x L x H(cm)	Capacity (t/h)		Max feed size (mm)	Double amplitude (mm)	Vibration frequency (times/min)	Rated voltage （a)	Rated current (a)	Power (kw)	Weight （kg)
Model	Dimension B x L x H(cm)	level	-10°	Max feed size (mm)	Double amplitude (mm)	Vibration frequency (times/min)	Rated voltage （a)	Rated current (a)	Power (kw)	Weight （kg)
GZG30-80	308015	30	40	100	4	1450	380	0.87	2*0.25	180
GZG40-90	409020	40	50	100	4			0.87	2*0.25	205
GZG50-100	5010020	60	80	150	4			0.87	2*0.25	230
GZG60-100	6010020	100	150	200	4			1.76	2*0.55	370
GZG70-100	7010025	120	170	200	4			1.76	2*0.55	390
GZG80-120	8012025	160	230	250	4			2.17	2*0.75	560
GZG90-150	9015025	180	250	250	4			2.17	2*0.75	610
GZG100-150	10015025	270	380	300	4			3.18	2*1.10	760
GZG110-150	11015025	300	420	300	4			3.18	2*1.10	840
GZG125-160	12516030	450	650	350	4			3.80	2*1.50	920
GZG130-160	13016030	480	670	350	4			3.80	2*1.50	1040
GZG150-180	15018030	720	1000	500	4			5.57	2*2.20	1420
GZG180-200	18020037.5	900	1200	500	4	960		9.37	2*3.70	2350

Notice: There is a chance that JIEMA may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
