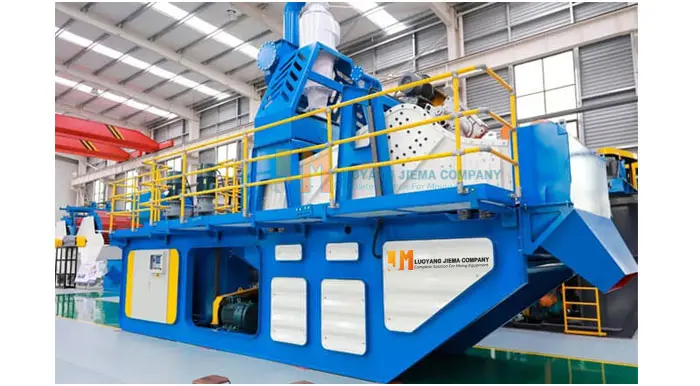

Ultra sand wash plant is the ideal choice for customers to perform washing, grading, scrubbing, purification, and dewatering of sand and gravel aggregates.
XS series ultra sand wash plant is a combination of linear screen, cyclone and scrubber module, the product features include sand washing, fine sand recovery, dewatering and desliming, concentration and grading, etc., which can effectively remove sand impurities, and get clean and very low moisture content of high-quality sand and gravel aggregate.
The equipment fully combines the functional characteristics of multiple equipment to achieve the replacement of the previous line of multiple equipment with one equipment.
For the sand and gravel aggregate production enterprises to achieve greater economic benefits to provide a strong guarantee.
Working principle of ultra sand wash plant
The mixed material firstly enters into the scrubber for full scrubbing, and then enters into the water tank under the screen through the chute, and enters into the cyclone through pumping, and cleans and controls the water of the material under the action of centrifugal force, so as to achieve the effect of separating the mud and sand.
The underflow material of the cyclone enters the coarse sand dewatering area of the linear screen for dewatering; while the overflow material enters the water tank through the return pipe for circulating cleaning and replenishing the water tank, thus realising efficient sand washing.
Features
1. One-piece installation structure, grille-type walkway steps, fully spliced guardrail, convenient and flexible.
2. All over-flow parts are sprayed with 5mm wear-resistant polyurethane material to reduce the wear and tear of the equipment.
3. Intelligent PLC control system for precise flow control and liquid level control, realising intelligent production.
4. The shell adopts 8mm thick steel plate and the inner lining adopts 95 wear-resistant ceramics, which makes the equipment more wear-resistant.
5. Upgraded chamber type exciter, can be adjusted by adding or subtracting the counterweight block or replacing its position to adjust the excitation force and the size of the direction angle.
6. The design parts are completely according to the export standard 40 feet container design, can be boxed and sent to all over the world.
