ZSW Vibrating Feeder

Feed Size: 300-800mm

Production Capacity: 30-1500 t/h

Process Materials: pebble, granite, basalt, quartzite, iron ore, limestone, etc.

Application Scope: vibrating feeder is widely used in crushing and screening combined equipment in metallurgy, coal mine, mineral processing, artificial sand and gravel, construction waste recovery, building materials, chemical industry, abrasives and other industries.

You can also send us a message and we will reply to you within 24 hours.

Email: gemma@jiematrading.com Get Latest Price

Product Details

Parameters

Product Details

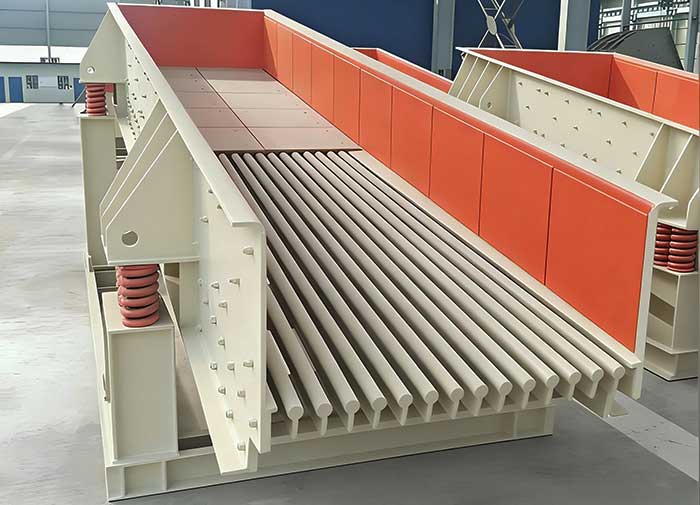

This vibrating feeder is mainly used for continuous and uniform feeding before the primary coarse crusher. It can also screen fine materials, greatly increasing the production capacity of subsequent crushers.

It has the following advantages: stable vibration and reliable operation; adjustable grate gap, specially designed for good material flow and to prevent material blockage; continuous and uniform feeding; coarse screening capability, achieving a pre-screening effect and increasing output; optional variable frequency speed control motor, adjusting the frequency to change the output and easily controlling the feed rate without frequent motor starts; convenient installation and maintenance.

Parameters

Model	Max feeding size（mm）	Rotation speed（r/min）	Angle（°）	Capacity （t/h）	Power（kw）
ZSW380×95	500	500-800	0-10	~150	11
ZSW420×110	580	500-800	0-10	120-240	15
ZSW490×110	580	500-800	0-10	120-280	18.5
ZSW600×130	750	500-800	0-10	220-500	30
ZSW600×150	900	500-800	0-10	400-750	37
ZSW600×180	1050	500-800	0-10	400-1000	45
ZSW600×210	1200	500-800	0-10	550-1250	45
ZSW600×240	1400	500-800	0-10	600-1500	55

Notice: There is a chance that JIEMA may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
