Screw press sludge dewatering machine

DS standard processing capacity (dry solids): 3 ~ 640 kg/h

Sludge treatment volume: 0.12 ~ 48 m³/h

Applicable feed concentration range: 10,000 ~ 50,000 mg/L (1% ~ 5%)

Treatment volume variation: Decreases as concentration increases

You can also send us a message and we will reply to you within 24 hours.

Email: gemma@jiematrading.com Get Latest Price

Product Details

Parameters

Product Details

The screw press sludge dewatering machine is a high-efficiency solid-liquid separation device based on the screw extrusion principle. It has been widely used in municipal and industrial wastewater treatment since the 1960s.

Working Principle

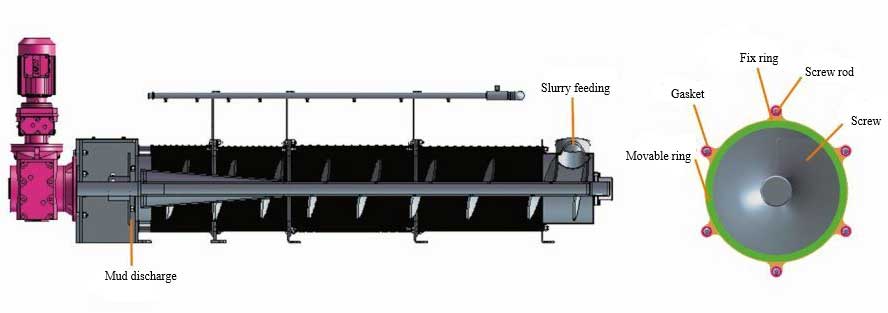

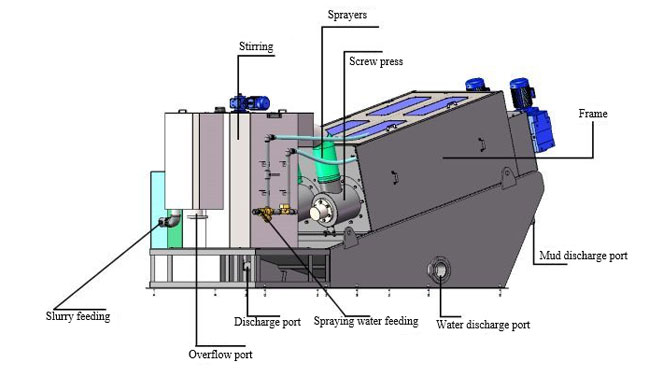

The core principle of the screw press is a progressive dewatering process combining screw extrusion and dynamic/static ring filtration, mainly comprising five stages:

Flocculation and Mixing: Sludge is thoroughly mixed with a high-molecular-weight flocculant (such as PAM), causing fine particles to agglomerate into larger flocs.
Gravity Concentration: The flocculated sludge enters the concentration section, where most of the free water is squeezed out under gravity within the wider gaps between the rings.
Screw Extrusion Dewatering: The concentrated sludge is pushed into the dewatering section. As the screw shaft rotates, the gap between the dynamic and static rings gradually narrows, while the back pressure plate creates mechanical resistance, continuously increasing the pressure on the sludge and forcefully squeezing out the internal water.
Cake Discharge: The dewatered cake (80%-85% moisture content) is discharged from the discharge port.
Self-Cleaning: The relative movement of the dynamic and static rings and the automatic spray system prevent filter clogging, achieving continuous and stable operation.

Key Features

Compact Structure: Small footprint, flexible installation, suitable for spaces with limited space.
Clog-resistant: The relative movement of the moving and stationary rings has a self-cleaning function, greatly reducing maintenance difficulty and cost.
Stable Operation: Can operate continuously and automatically, with low energy consumption and a high degree of automation.
Durable: Core components are made of wear-resistant materials, ensuring a long service life.

Screw presses are widely used in:

Municipal wastewater treatment projects; Industrial water treatment: petrochemical, light industry, chemical fiber, papermaking, pharmaceutical, leather and other industries; Particularly suitable for small and medium-sized sludge treatment projects.

Parameters

Model	DS standard processing volume	Sludge treatment volume
Model	DS standard processing volume	10000mg/L	20000mg/L	30000mg/L	40000mg/L	50000mg/L
MYDL101	3~6kg/h	~0.3m³/h	~0.15m³/h	~0.13m³/h	~0.125m³/h	~0.12m³/h
MYDL131	6~12kg/h	~0.6m³/h	~0.3m³/h	~0.26m³/h	~0.25m³/h	~0.24m³/h
MYDL201	9~18kg/h	~0.95m³/h	~0.6m³/h	~0.5m³/h	~0.4m³/h	~0.36m³/h
MYDL202	18~36kg/h	~1.8m³/h	~1.2m³/h	~1m³/h	~0.8m³/h	~0.72m³/h
MYDL301	40~60kg/h	~4m³/h	~2.5m³/h	~2m³/h	~1.5m³/h	~1.2m³/h
MYDL302	80~120kg/h	~8m³/h	~5m³/h	~4m³/h	~3m³/h	~2.4m³/h
MYDL303	120~180kg/h	~12m³/h	~7.5m³/h	~6m³/h	~4.5m³/h	~3.6m³/h
MYDL304	160~240kg/h	~16m³/h	~10m³/h	~8m³/h	~6m³/h	~4.8m³/h
MYDL351	80~120kg/h	~8m³/h	~4m³/h	~3.5m³/h	~3m³/h	~2.4m³/h
MYDL352	160~240kg/h	~16m³/h	~8m³/h	~7m³/h	~6m³/h	~4.8m³/h
MYDL353	240~360kg/h	~24m³/h	~12m³/h	~10.5m³/h	~9m³/h	~7.2m³/h
MYDL354	320~480kg/h	~32m³/h	~16m³/h	~14m³/h	~12m³/h	~9.6m³/h
MYDL401	120~160kg/h	~12m³/h	~6m³/h	~5m³/h	~4m³/h	~3.2m³/h
MYDL402	240~320kg/h	~24m³/h	~12m³/h	~10m³/h	~8m³/h	~6.4m³/h
MYDL403	360~480kg/h	~36m³/h	~18m³/h	~15m³/h	~12m³/h	~9.6m³/h
MYDL404	480~640kg/h	~48m³/h	~24m³/h	~20m³/h	~16m³/h	~12.8m³/h

Model	Screw	Mud discharge height(mm)	Dimension (mm)			Net weight	Running weight
Model	Screw	Mud discharge height(mm)	(L)	(W)	(H)	Net weight	Running weight
MYDL101	φ100×1	215	1860	750	1030	220kg	315kg
MYDL131	φ130×1	250	2000	770	1050	250kg	395kg
MYDL201	φ200×1	350	2520	850	1430	430kg	540kg
MYDL202	φ200×2	350	2560	1030	1430	640kg	660kg
MYDL301	φ300×1	530	3360	1000	1760	820kg	1300kg
MYDL302	φ300×2	530	3560	1271	1760	1310kg	2000kg
MYDL303	φ300×3	530	3720	1630	1760	1815kg	2700kg
MYDL304	φ300×4	530	3860	2010	1760	2320kg	3600kg
MYDL351	φ350×1	570	4030	1090	2120	1275kg	2000kg
MYDL352	φ350×2	570	4380	1625	2120	2250kg	3250kg
MYDL353	φ350×3	570	4510	1980	2120	3100kg	4600kg
MYDL354	φ350×4	570	4550	2705	2120	4250kg	5700kg
MYDL401	φ400×1	660	4650	1273	2200	1980kg	4200kg
MYDL402	φ400×2	660	4960	1740	2200	3450kg	6000kg
MYDL403	φ400×3	660	5010	2520	2200	5140kg	8000kg
MYDL404	φ400×4	660	5170	3200	2200	6640kg	9500kg

Notice: There is a chance that JIEMA may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
