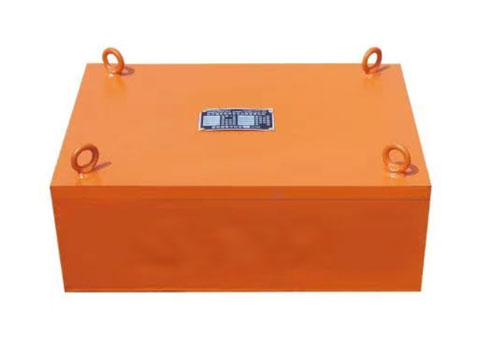

Permanent magnet iron separator

Belt width: 400 ~ 1600 mm

Rated hanging height: 130 ~ 450 mm

Magnetic field strength: 63 ~ 70 mT

Weight: 210 ~ 270 kg

You can also send us a message and we will reply to you within 24 hours.

Email: gemma@jiematrading.com Get Latest Price

Product Details

Parameters

Product Details

This equipment is used in conjunction with various belt conveyors and vibrating conveyors to remove ferromagnetic substances weighing 0.1-35 kg from bulk materials. It is widely used in industries such as cement, thermal power generation, metallurgy, mining, chemical, glass, papermaking, and coal.

Key features

The magnetic circuit is designed using computer simulation, resulting in high performance, strong magnetic field, and powerful attraction.

High-performance neodymium iron boron (NdFeB) material is used as the magnetic source, offering high coercivity and resistance to demagnetization; demagnetization is less than 5% over eight years.

Energy-free operation, saving energy and protecting the environment; continuous and trouble-free operation even in harsh environments.

Small size, light weight, and easy installation.

Parameters

Model	Belt widt（mm）	Hang height (≤mm)	Material thk (≤mm)	Magnetic field strength (≥mT)	Belt speed (≤m/s)	Weight (kg)	Dimension(mm)
Model	Belt widt（mm）	Hang height (≤mm)	Material thk (≤mm)	Magnetic field strength (≥mT)	Belt speed (≤m/s)	Weight (kg)	L	D	H
RCYB-4	400	130	80	63	2.5	115	400	300	210
RCYB-5	500	150	100	63		180	500	400	230
RCYB-6	600	180	130	63		300	600	500	250
RCYB-6.5	650	200	150	65		450	650	600	250
RCYB-8	800	250	200	70		580	800	700	250
RCYB-10	1000	300	250	70		880	1000	800	250
RCYB-12	1200	350	300	70		1100	1200	1000	270
RCYB-14	1400	400	350	70		1700	1400	1300	270
RCYB-16	1600	450	400	70		2200	1600	1500	270

Notice: There is a chance that JIEMA may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
