Spiral Sand Washer

Feeding size: ≤10 mm (consistent across all models)

Capacity: 20 ~ 250 t/h

Spiral diameter: 760 ~ 1500 mm (single screw); 920×2 ~ 1500×2 mm (double screw)

Power: 7.5 ~ 44 kW (max single unit 22×2 kW)

You can also send us a message and we will reply to you within 24 hours.

Email: gemma@jiematrading.com Get Latest Price

Product Details

Parameters

Product Details

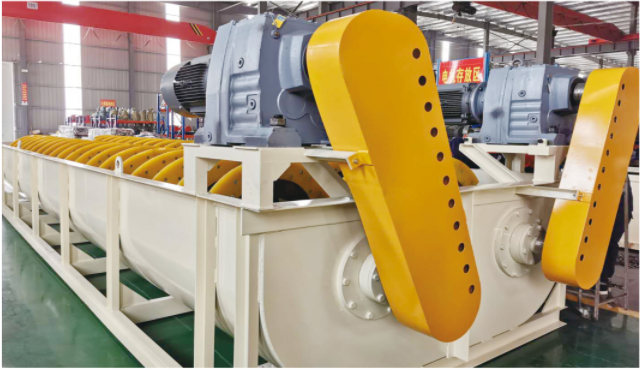

Spiral sand washing machine is a washing and screening equipment that uses rotating spiral blades to powerfully agitate and clean sand and gravel. It is suitable for materials with high mud content and high viscosity, and has unique advantages in terms of processing capacity and cleaning depth.

Key Advantages: More Thorough Cleaning: Suitable for materials with high mud content, achieving a cleaner finish than wheel-type cleaning systems.

Larger Processing Capacity: Suitable for large-scale continuous operation.

High Adaptability: Can handle sand and gravel of various particle sizes within the 0-30mm range.

Good Durability: Polyurethane lining on the helical blades ensures a long service life.

Parameters

Model	Feed size（mm）	Capacity （t/h）	Spiral diameter（mm）	Spiral qty （pcs）	Spiral length（mm）	Power （kw）	Dimension （mm）
LX0760	≤10	20-40	760	1	6000	7.5	5700X1420X1900
LX0920	≤10	30-60	920	1	8000	11	8710X1630X2080
LX1120	≤10	40-80	1120	1	8000	18.5	9230X1840X2130
LX1500	≤10	50-100	1500	1	8000	22	9620X2230X2480
2LX0920	≤10	60-120	920X2	2	8000	11X2	8710X2600X2080
2LX1120	≤10	80-160	1120X2	2	8000	18.5X2	9230X3050X2130
2LX1500	≤10	120-250	1500X2	2	8000	22X2	9620X3730X2480

Notice: There is a chance that JIEMA may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
