Sand Washing Machine

Feed size: ≤10 mm

Capacity: 20 ~ 250 t/h

Wheel size: 1800×80 ~ 4200×30 mm

Power: 29.4 ~ 149 kW

You can also send us a message and we will reply to you within 24 hours.

Email: gemma@jiematrading.com Get Latest Price

Product Details

Parameters

Product Details

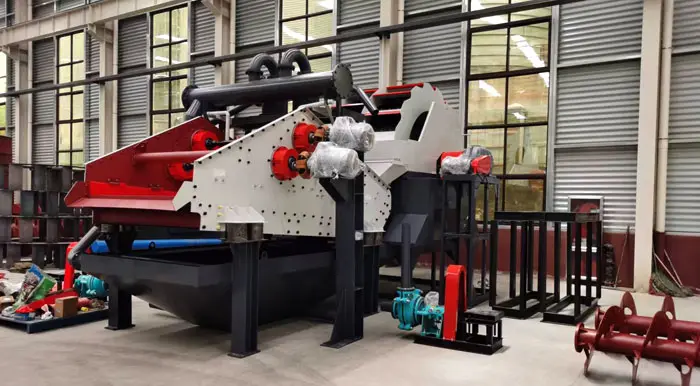

Wheel-type sand washing, dewatering, and recycling integrated machine

The wheel-type sand washing, dewatering, and recycling integrated machine is a highly integrated sand and gravel processing equipment that integrates four major functions: sand washing, dewatering, desliming, and fine sand recycling. It is widely used in sand and gravel aggregate production lines

The equipment mainly consists of the following core components: Sand washing section: wheel-type sand washer, water storage tank, reducer, motor Recovery section: vacuum high-pressure pump, hydrocyclone Dewatering section: dewatering screen. Auxiliary system: washing tank, high-level return water tank, backflow device, overflow device, etc.

Parameters

Model	Feed size（mm）	Capacity （t/h）	Wheel size（mm）	Hydrocyclone size（mm）	Screen size（mm）	Power （kw）	Dimension （mm）
LZ1808-55-1224D	≤10	20-40	1800X800	250X2	1200X2400	29.4	5800X5000X1950
LZ2512-65-1530D	≤10	30-60	2500X1200	300X2	1500X3000	40	5800X5560X2750
LZ3016-65-1842D	≤10	40-80	3000X1600	300X2	1800X4200	46.5	7950X6200X3700
LZ3016-75-1842J	≤10	60-120	3000X1600	350X2	1800X4200	57.5	7950X6200X3700
LZ3620-75-2442J	≤10	100-150	3600X2000	300X4	2400X4200	66.5	8500X6800X3700
LZ3624-140-3048J	≤10	120-200	3600X2400	350X4	3000X4800	115	7950X7400X4100
LZ4230-180-3660J	≤10	160-250	4200X3000	300X6	3600X6000	149	8580X8020X4860

Notice: There is a chance that JIEMA may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
