Tailings Dewatering Screen

Feeding size: ≤10 mm (consistent across all models)

Capacity: 30 ~ 250 t/h

Screen panel size: 1500×3000 ~ 3600×6000 mm

Power: 11 ~ 44 kW (5.5×2 ~ 22×2 kW)

You can also send us a message and we will reply to you within 24 hours.

Email: gemma@jiematrading.com Get Latest Price

Product Details

Parameters

Product Details

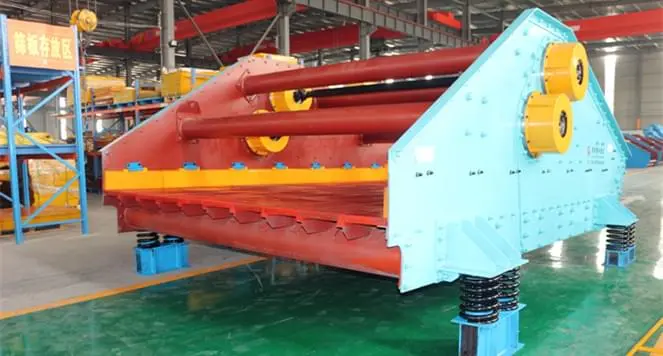

Tailings dewatering screen is suitable for smaller size materials, compared with the ordinary linear vibrating screen, this screen has large capacity, great dehydration effect, low moisture content, and other advantages. It is widely used in different industries.

Key Features:

High Dewatering Efficiency: Finished sand moisture content can be reduced to 12%-15%

Strong Processing Capacity: Single unit processing capacity can reach 10-150t/h, supporting continuous operation

Wide Applicability: Can process various materials within the range of 0.05-10mm

Compact Structure: Small footprint, easy installation, can be integrated with other equipment (such as sand washing machines, hydrocyclones)

Energy Saving and Environmental Protection: With a circulating water system, wastewater reuse rate ≥80%

Parameters

Model	Feeding Size (mm)	Capacity (t/h)	Screen Panel (mm)	Screen Area (m²)	Power (kw)	Weight (kg)	Overall Size (mm)
ZSD1530	≤10	30-60	1500*3000	4.5	5.5*2	1850	308025001600
ZSD1842	≤10	60-100	1800*4200	7.56	7.5*2	3900	437030802000
ZSD1848	≤10	60-100	1800*4800	8.64	7.5*2	4220	479030651960
ZSD2442	≤10	80-150	2400*4200	10.08	11*2	4850	440037401930
ZSD2448	≤10	80-150	2400*4800	11.52	11*2	5080	500037401980
ZSD3048	≤10	120-200	3000*4800	14.4	15*2	7470	496045202220
ZSD3060	≤10	120-200	3000*6000	18.0	18.5*2	9100	616045202220
ZSD3660	≤10	150-250	3600*6000	21.6	22*2	12200	616051202280

Notice: There is a chance that JIEMA may make changes on above-mentioned information. Product pictures and parameters about models, data, performances and specifications on this website are for reference only.
