Principles and Application Scenarios of Horizontal Slurry Pump

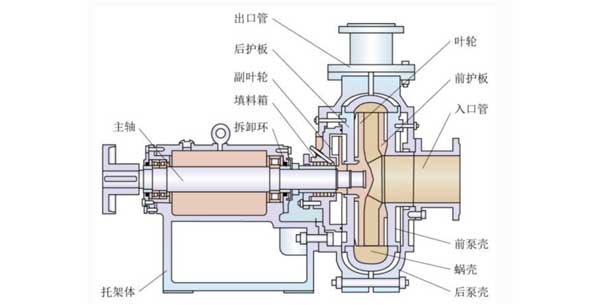

主要部件（Chinese / English）

1. 吸入口 Suction inlet
2. 前护板 Front liner / Front guard plate
3. 叶轮 Impeller（泵核心，产生离心力）
4. 蜗壳 Volute（把动能转为压力能）
5. 后护板 Rear liner / Back guard plate
6. 副叶轮 Expeller（辅助密封，防止浆体进入轴封）
7. 填料箱 Stuffing box（轴封位置）
8. 泵轴 Pump shaft
9. 轴承组件 Bearing assembly（支撑泵轴，承受载荷）
10. 托架体 Bracket
11. 联轴器 Coupling（连接电机与泵轴）
12. 出口管 Discharge pipe
13. 泵壳 Pump casing（双层壳体，外层承压，内衬耐磨可更换）

Working Principle

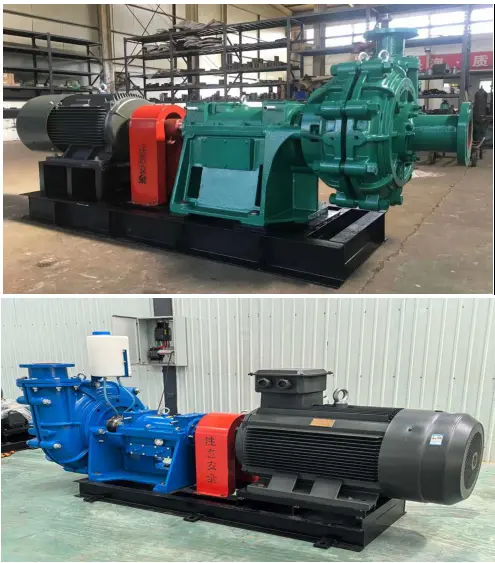

The horizontal slurry pump is a single-stage single-suction centrifugal pump with a horizontal shaft. The motor drives the shaft and impeller to rotate at high speed. The slurry (liquid mixed with solid particles) enters the impeller. Under centrifugal force, slurry is thrown to the outer edge of the impeller and gains kinetic energy and pressure. The slurry flows into the volute, flow velocity decreases, kinetic energy converts into pressure energy, and slurry discharges from the outlet. A low-pressure zone is formed at the center of the impeller after slurry is thrown out. The pressure of slurry pool continuously pushes slurry into the impeller to realize continuous transportation.   Structural feature: Double pump casing structure. Impeller, guard plates and volute liner are made of high-chromium cast iron or rubber to resist abrasion of solid particles.

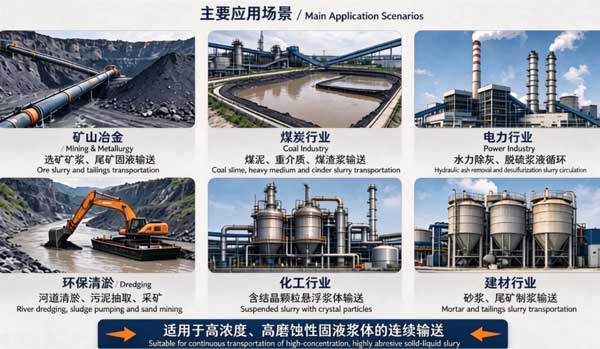

Application Scenarios

1. Mining & Metallurgy：Ore slurry transportation, concentrate and tailings conveying, filter press feeding in mineral processing plants.
2. Coal Industry：Transportation of coal slime, heavy medium and cinder slurry in coal washing plants.
3. Thermal Power Plant：Hydraulic ash removal and limestone slurry transportation for desulfurization.
4. Environmental Dredging：River dredging, sediment tank sludge, silt sludge transportation in sewage plants, sand pumping.
5. Chemical Industry：Transport weakly corrosive suspended slurry with crystal particles.
6. Building Materials：Tailings mortar and sand slurry transportation.
